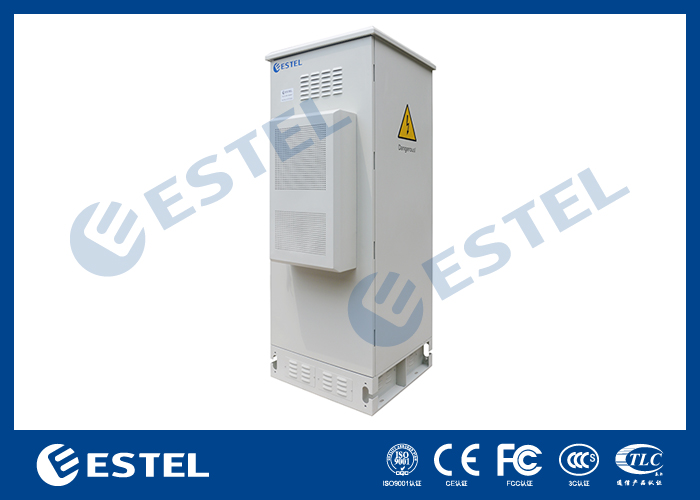

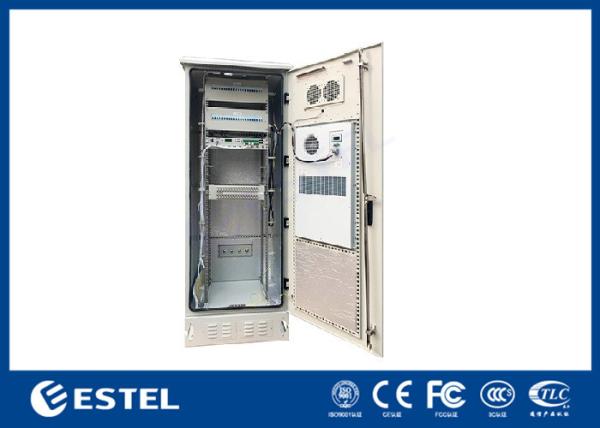

Single Wall Stainless Steel Heat Insulation 38U Outdoor Telecom Cabinet 750x700x2000 With DC Air Conditioner

1. Application Scope

The ET7570200 Outdoor Telecom Cabinet is mainly used in communication base station, such as 4G

system, communication/network integrated service, access/transmission switching station, emergency

communication/transmission, etc.

2. Cabinet Introduction

2.1 Cabinet Material

The cabinet is made of stainless steel.

(1) For front door, roof, two side panels and back panel: outer wall is 1.6mm stainless steel 304, inner wall

is 20mm PEF heat insulation.

(2) Plinth: outer wall is 2.0mm stainless steel 304, inner wall is 20mm PEF heat insulation.

The cabinet is assembled type.

2.2 Cabinet Structure

The cabinet includes one compartment,there is 19” rack form up to down, 38U space.

2.3 Cabinet Door and Lock

The door opening angle is larger than 110°and the door limit device can limit the opening angle. The lock

is theftproof three point lock, supporting padlock.

3. Features

3.1 The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment.

3.2 The cabinet cooling use one air conditioner, which work in alternation to continuously keep

thermostatic inside the cabinet.

3.3 The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding. On the

back of the cabinet, there are entrance holes individually for power cable, signal cable and optical cable.

3.4 All the cables, sealing and heat insulation used in the cabinet are made from flame retardant

materials.

3.5 The cabinet uses assembled structure, easy for installation.

3.6 The cabinet includes 19” standard installation rack.

4. Technical Specs

(1) Applicable environment conditions:

Environment temperature: -40°C ~ + 70°C

Environment humidity (RH): ≤95% (at + 40°C)

Air pressure: 62kPa ~ 102kPa

(2)Material: quality stainless steel

(3)Surface treatment: degreasing, derusting, rustproof phosphating (or galvanizing), powder coated.

(4)Cabinet load bearing: ≥600kg

(5)Ingress protection: IP55

(6)Flame retardance: comply with GB5169.7 test A

(7)Insulation resistance: the insulation resistance between grounding devices and cabinet body parts is

not lower than 2X104M/500V(DC).

(8)Withstand voltage: the withstand voltage between grounding devices and cabinet body parts is not

lower than 3000V(DC)/1min.

(9)Mechanical strength: each surface can bear upright pressure＞980N; after the door is open, its outer

end can bear upright pressure ＞200N.

(10)Technical Parameters List

(11) Accessories List

Dimension Diagram

Cabinet External Dimension (W×D×H):750×700×2000mm (excluding air conditioner)

5. Grounding Protection

(1)The cabinet includes grounding copper bar with anti-corrosion coating, with 120mm2 sectional area.

There are enough screws for wiring connection terminals.

(2)The metal part of the cabinet should be interconnected and be connected with grounding bar.

Connection resistance between any two points is lower than 0.1Ω.

(3)Protective earthing of other equipments inside the cabinet should be connected to the grounding bar.

6.Removable Roof

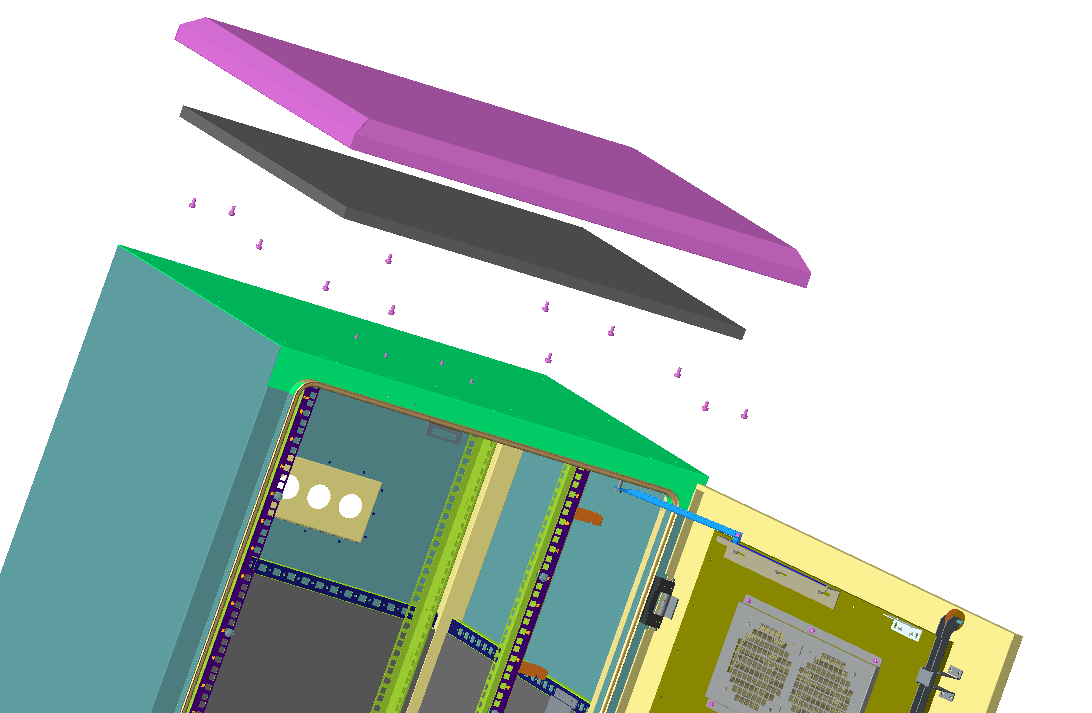

There are 12 pcs of screws on the cabinet roof, as shown below picture. Unscrew the screws from the

inside roof, then the roof can be removed, the diagram is as below.

Notes: inside the top, 3 pcs of srews on left side and 3 pcs of srews on right side are concealed by the

inner side insulation cotton. The insulation cotton is required to be folded down a little, then the screw can

be seen.

Besides, the roof has ventilation hole, as shown below picture
