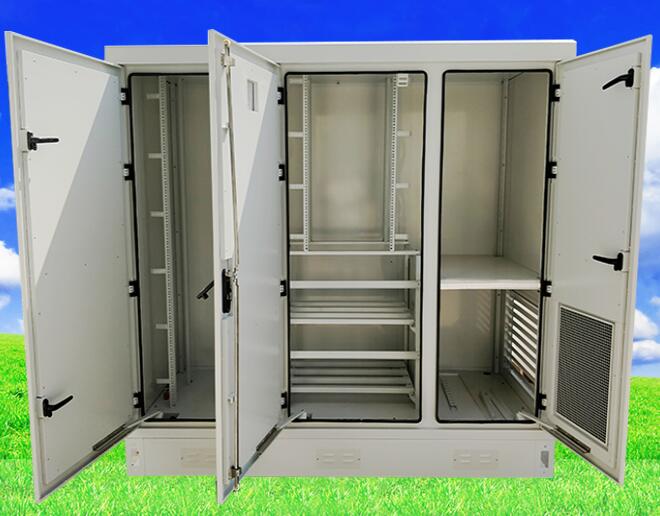

SU304 Temperature Control Outdoor Stainless Steel Cabinets Anti
smoke Anti corrosion Powder Coating
1. Applications
The ET13065155 Outdoor Telecom Cabinet is mainly used in wireless
communication base station:
(1) 4G system
(2) Communication/network integrated service
(3) Access/transmission switching station
(4) Emergency communication/transmission

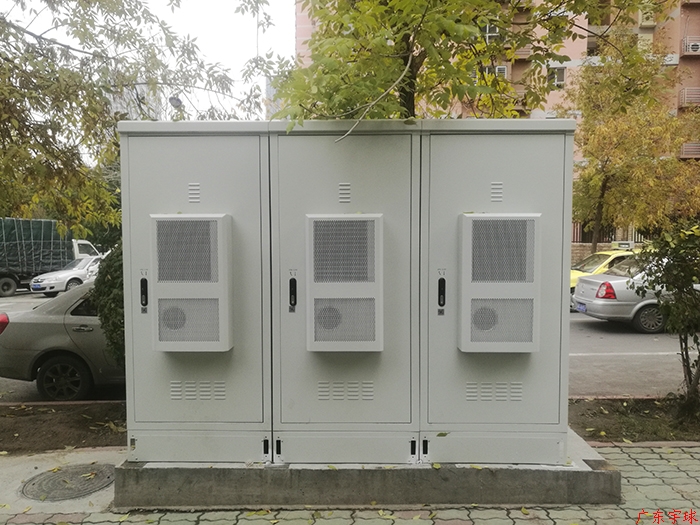

(5) The cabinet is suitable for outdoor environment, such as road
side, park, building roof, mountain area, flat ground, etc. The
cabinet can be installed with base station equipments, power supply
equipments, batteries, temperature control equipments, transmission
equipments and other equipments, or the cabinet can reserve
installation space and heat exchange capacity for the above
equipments, providing reliable mechanical and environmental
protection for normal operation of the internal equipments.
2. Advantages
(1) Standard compartment temperature control
Multiple temperature control modes optional
Energy saving and high efficiency
(2) Flexible structure
Compartment type design
Flexible assembly
Two compartments / multiple compartments
(3) High integrated
High compatibility, high integration
Supporting multiple equipments, good appearance
(4) Fast deployed
Can be assembled, easy for transportation
Modular assembly, short installation time
Suitable for road side station and building top station. After
being fixed on the ground, the cabinet will start to work.
3. Specifications
(1) Technical Parameters
| Item | Type | Technical Parameter |
| Structure | Dimension | External Dimension: H×W×D 1550×1300×650mm |
| Layout | 2 compartments |
| Equipment Installation Method | Battery shelf |
| Door | With two front doors, and special lock for outdoor cabinet (support
padlock) |
| Material | Stainless steel SU304, double wall |
| Heat Insulation | There are heat insulation between inner wall and outer wall. The
insulation material is PEF. |
| Structure | Assembled |
| Ingress Protection | IP55 |
| Temperature Control | Cooling | AC220V air conditioner and DC48V fans |
| Lighting | LED lamp | 48V LED lamps (immovable), with protective circuit breaker |
| Temperature | Temperature | Working Temperature: -40°C ~ +55°C |
| | Storage Temperature: -50°C ~ + 70°C |
| | Transport Temperature: -50°C ~ +70°C |
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1120 ×(1±5%)W/m2 |
(2) Accessories List
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Telecom Cabinet | 1 | Set | (1) External Dimension: H×W×D 1550×1300×650mm (2) 2 compartments: used for installing battery (3) With two front doors, and special lock for outdoor cabinet
(support padlock) ; (4) Material: Stainless steel SU304, double wall, outer wall is 1.2mm, inner wall
is 0.5mm |
| 2 | Air Conditioner | 1 | Set | Cooling capacity: 500W, Power supply: AC220V, 50HZ; |
| 3 | Auxiliary Direct Ventilation Fans | 1 | PC | 12038 DC48V |
| 4 | LED Lamp Sensor | 2 | PC | Used for controlling LED lamp on/off |
| 5 | LED Lamp | 2 | PC | DC48V |
| 6 | Package | 1 | Set | Wooden Case |
4. Features
4.1 The cabinet is used in outdoor environment., it can be
dustproof, sunproof and rainproof.
4.2 Including -48VDC illumination lamp.
4.3 The cabinet cooling uses air conditioner and direct ventilation
fan.
4.4 The layout of the cabinet is reasonable, which will facilitate
cable access, fixing and grounding. At the bottom of the cabinet,
there are entrance holes individually for power cable, signal cable
and optical cable.
4.5 All the cables, sealing and heat insulation used in the cabinet
are made from flame retardant materials.
4.6 The cabinet uses assembled structure, easy for installation.
4.7 The cabinet includes 19” standard installation rack.
4.8 Theft proof design
●Inside installation, inside fixing, no outer screws
● Anti-theft three point lock
● Inside door hinges, multiple protection
● Embedded cabinet door, theft proof
5. Our other outdoor telecom cabinets
