    20U Waterproof Outdoor Telecom Cabinet 1500W Base Station Cabinet

    Ask Lasest Price
    Brand Name : ESTEL
    Model Number : ET70100115-EQ
    Certification : ISO9001, CE, 3C, FCC, TLC, IP55
    Price : negotiation
    Payment Terms : L/C, D/A, D/P, T/T, etc
    Supply Ability : 100,000 sets per month
    Delivery Time : 3-5 working days
    • Product Details
    • Company Profile

    20U Waterproof Outdoor Telecom Cabinet 1500W Base Station Cabinet

    20U Waterproof Outdoor Telecom Cabinet 1500W Base Station Cabinet


    1. Applications

    The outdoor telecom cabinet ET70100115-EQ has been designed to house sensitive electronic equipments for use in communications (such as satellite modem, modem redundancy controller, Ethernet switch, Ethernet router, etc.), transportation and rail infrastructure projects including SISS, CIS, CCTV, communications, networking etc.

    2. Features

    ● Outdoor anti corrosion powder coating
    ● The cabinet is dustproof, sunproof and rainproof, which is used in outdoor environment
    ● Standard 20U 19“ rack for installation
    ● IP grade: IP55
    ● Cabinet cooling: air conditioner and fans
    ● The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding
    ● High integration, compact structure, easy installation and migration on later stage
    ● Anti-theft three point lock, excellent keyhole protection device

    3. Technical Parameters

    Configuration

    Item

    Technical Parameter

    Cabinet Body

    Model

    ET70100115-EQ

    Size

    External Size: 700mm×1000mm×1150mm(W×D×H)
    Internal Space: 19” 20U.

    Component

    The whole cabinet is composed of three parts: top cover, cabinet body and base. The installation method is floor mounted.

    Material

    Galvanized steel, single wall with heat insulation

    Structure

    (1) One front door

    (2) Anti-theft three point lock(support padlock)

    (3) Door stopper is installed for keep door when door is open

    (4) Door with good sealing, waterproof and dustproof

    (5) Include standard 20U 19“ rack inside the cabinet, high compatibility.

    (6) Equipped with cable manager

    (7) Cable inlets at the bottom of cabinet

    Surface Treatment

    Outdoor anti-corrosion powder coating

    Color

    Grey RAL7035

    Ingress Protection

    IP55

    Working Temperature

    -40°C~+75°C

    Cooling Method

    Air Conditioner

    Cooling Capacity: 1500W
    Power Supply: 220VAC, 50Hz
    On front door

    Fan

    Two AC220V fans + one temperature controller

    Illumination

    LED Lamp

    AC220V LED lamp with one lamp switch


    4. Cabinet Drawing

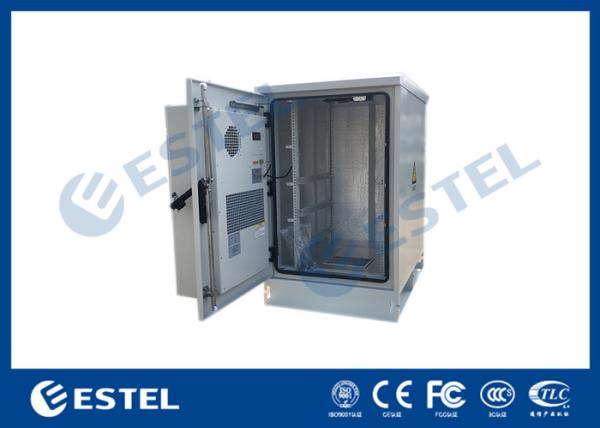

    5. Cabinet Pictures
