    240kw DC Electric Car Charging Station New Energy Vehicle EV Car Charger With Double Guns

    Ask Lasest Price
    Brand Name : ESTEL
    Model Number : EDC360-240FC
    Certification : CCC, CE, ISO, TUV, RoHS
    Price : negotiation
    Payment Terms : L/C,D/A,T/T, Western Union, Paypal, etc
    Supply Ability : 2,000 sets per month
    Delivery Time : 40DAYS
    • Product Details
    • Company Profile

    240kw DC Electric Car Charging Station New Energy Vehicle EV Car Charger With Double Guns

    240kw DC Electric Car Charging Station New Energy Vehicle EV Car Charger with Double Guns


    240kw DC Electric Car Charging Station New Energy Vehicle EV Car Charger Product Description

    DC charging pile is a device used to charge electric vehicles, which can charge the battery of electric vehicles at high speed.
    Unlike AC charging stations, DC charging stations can transfer electricity directly to the battery of the electric vehicle, so it
    can charge faster.


    DC charging piles can be used not only to charge personal electric vehicles, but also for charging stations in public places.

    In the popularization of electric vehicles, DC charging piles also play a crucial role, which can meet the needs of users for fast
    charging and improve the convenience of using electric vehicles.



    240kw DC Electric Car Charging Station New Energy Vehicle EV Car Charger Product Parameters


    Item NumberEDC360-240FC

    Power

    input

    Input ratingAC440V 3ph Wye 350A max.
    Number of phase / wire3ph / L1, L2, L3, N, PE
    Power factor>0.98
    Current THD<5%
    Efficiency>95%

    Power

    output

    Output power240kW Max (2gun)
    Output ratingDC200V-1000V DC
    Output accuracy<0.5% (voltage and current)
    ProtectionProtectionOver current, Under voltage, Over voltage, Residual current, Surge protection, Short circuit, Over temperature, Ground fault
    User interface & controlDisplay10” touch screen
    Support languageEnglish (Other languages available upon request)
    Charge optionCharge options to be provided upon request: Charge by duration, Charge by energy, Charge by fee
    EnvironmentalOperating temperature-35℃to+50℃
    Storage temperature-40 ℃to+70℃
    Humidity< 95% relative humidity, non-condensing
    AltitudeUp to 2000 m (6000 feet)
    MechanicalEnclosure type:NEMA Type 3R
    Enclosure Protection against External Mechanical ImpactsIK10 according to IEC 62262
    CoolingAir forced
    Charging cable length5m
    Dimension (W*D*H) mm1022*770*1720mm
    Weight600kg

    240kw DC Electric Car Charging Station New Energy Vehicle EV Car Charger Product Feature


    Product Display


    240kw DC Electric Car Charging Station New Energy Vehicle EV Car Charger Application


    DC charging piles are widely used in public charging stations, highway service areas, commercial centers and other places,

    and can provide fast charging services for electric vehicles.


    With the popularization of electric vehicles and the continuous development of technology,

    the application range of DC charging piles will gradually expand.

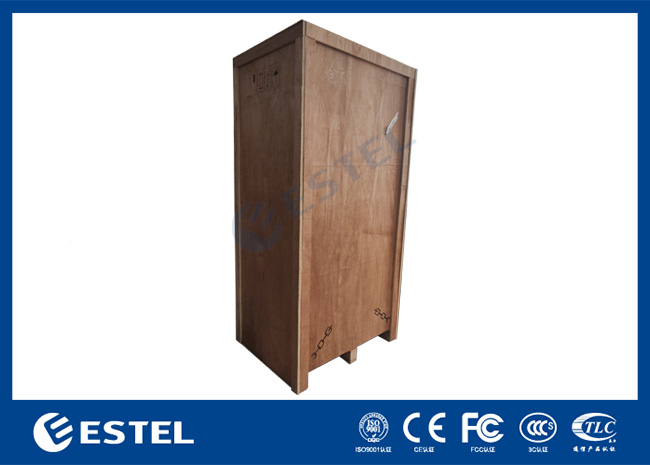

    Package

    Wooden case
