    Double Wall Outdoor Power Cabinet 15U Rack Air Conditioner Cooling With One Battery Shelf

    Ask Lasest Price
    Brand Name : ESTEL
    Model Number : ET6565130-UP
    Certification : ISO9001
    Payment Terms : L/C, T/T, D/A, D/P, Western Union, MoneyGram
    Supply Ability : 1200PCS per month
    Delivery Time : 15 days
    Price : 715-4286 usd
    • Product Details
    • Company Profile

    Double Wall Outdoor Power Cabinet 15U Rack Air Conditioner Cooling With One Battery Shelf

    Double Wall Outdoor Power Cabinet With One Battery Shelf 15U rack Air Conditioner Cooling Telecom Cabinet

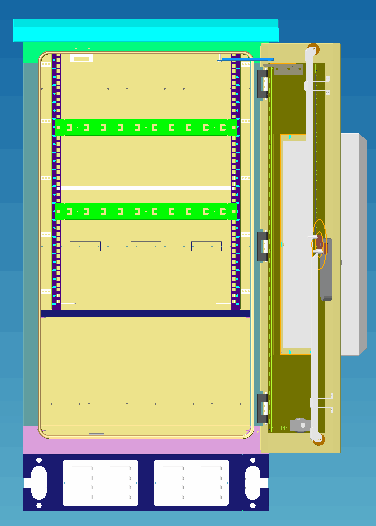

    1. 2D Drawing
    2. Technical Parameter
    ItemTypeTechnical Parameter
    StructureDimensionExternal Size H*W*D 1300*650*650mm
    LayoutOne compartment,the upper part for installing 19” equipment, the lower part for installing battery
    Equipment Installation Method19” rack, battery tray
    DoorWith one front door , and anti-theft three point lock for outdoor cabinet (support padlock)
    MaterialGalvanized steel; 1.5mm thick outer plate, 0.8mm thick inner plate
    Heat Insulation

    There are heat insulation between inner wall and outer wall. The


    insulation material is 20mm PEF.

    StructureAssembled
    Ingress ProtectionIP55
    Temperature ControlCoolingAir conditioner and fan
    LightingLED lamp220VAC 60Hz LED lamps
    TemperatureTemperatureWorking Temperature: -40°C ~ +55°C
    Storage Temperature: -50°C ~ + 70°C
    Transport Temperature: -50°C ~ +70°C
    HumidityRelative Humidity5% ~ 100%
    PressureAir Pressure62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
    Radiation IntensitySolar Radiation Intensity1120 ×(1±5%)W/m2
    3. Accessory list
    No.ItemQuantityUnitSpecs
    1Outdoor Telecom Cabinet1Set

    (1) External Dimension H×W×D

    1300×650×650mm ;

    (2) One compartment: the upper part is 19" rack, the lower part is one battery shelf.

    (3) With one front door, with three point lock for outdoor cabinet.

    (4) Material: galvanized steel; 1.5mm thick outer plate, 0.8mm thick inner plate; insulation: 20mm PEF.

    2Air Conditioner1Set

    Cooling Capacity: 500W;

    Power Supply: 220VAC, 60Hz

    3Fan1SetAc220V 60Hz
    4DC Power Supply1Set

    Input: 110/220VAC 60Hz;

    Output: 12VDC, 50A, 600W

    5Door Sensor1PCFor open door alarm
    6LED Lamp Sensor1PCFor controlling LED lamp on/off
    7LED Lamp1PCDC48V
    8Package1SetWooden Case
    4. Application
    The ET6565130-UP Outdoor Cabinet is mainly used in wireless communication base station, such as communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.

    5. Features
    (1) The cabinet is dustproof, sunproof and rainproof, used in outdoor environment.
    (2) The equipment compartment and battery compartment cooling: fan and air conditioner.
    (3) The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding.
    (4) All the cables used in the cabinet are made from flame retardant materials

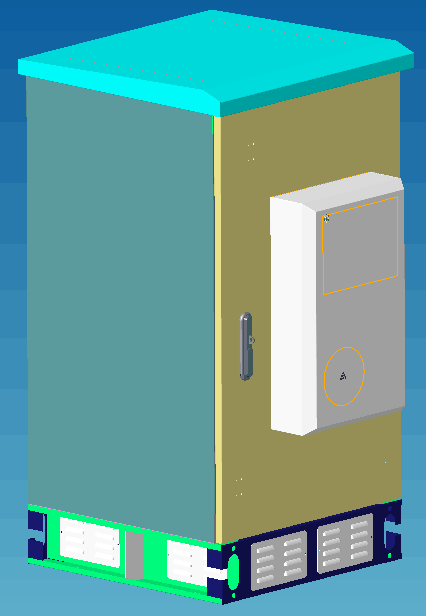

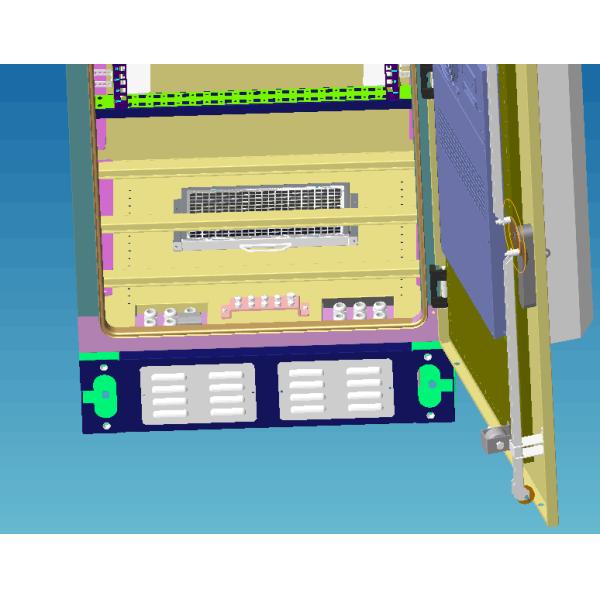

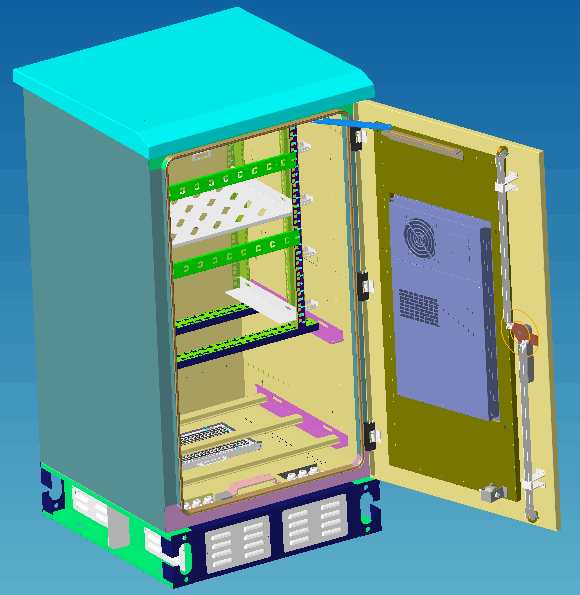

    6. 3D Drawing
