    Waterproof 24U Single Wall Insulated Outdoor Telecom Cabinet / Temperature Control Box

    Ask Lasest Price
    Brand Name : ESTEL
    Model Number : ET6565130-EQ
    Certification : ISO9001
    Payment Terms : T/T, L/C, Western Union, MoneyGram, D/A, D/P
    Supply Ability : 5000PCS per month
    Delivery Time : 20 woking days
    • Product Details
    • Company Profile

    Waterproof 24U Single Wall Insulated Outdoor Telecom Cabinet / Temperature Control Box

    24U Temperature Control Outdoor Telecom Cabinet Single Wall With Heat Insulation 19 Inch Equipment Cabinet


    1. Application


    The ET6565130-EQ Outdoor Cabinet is mainly used in wireless communication base station, such as communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.


    2. Features


    (1) The cabinet is dustproof, sunproof and rainproof, used in outdoor environment.

    (2) Cooling: air conditioner and fan.

    (3) The layout of the cabinet is reasonable, which will facilitate cable access, fixing and grounding.

    (4) All the cables used in the cabinet are made from flame retardant materials.


    3. Technical Parameters


    ItemTypeTechnical Parameter
    StructureDimensionExternal Size H*W*D 1300*650*650mm
    LayoutOne compartment, used for installing 19” equipment
    Equipment Installation Method19” rack
    DoorWith one front door, and anti-theft three point lock for outdoor cabinet (support padlock)
    Material

    Galvanized steel, single wall + heat insulation: 1.5mm outer steel plate + 20mm inner insulation

    (Option: galvanized steel, double wall+heat insulation, 1.5mm outer plate, 0.8mm inner plate, there is 20mm insulation between two plate)

    StructureAssembled
    Ingress ProtectionIP55
    Temperature ControlCoolingAir conditioner and fan
    LightingLED lampDC48V
    TemperatureTemperatureWorking Temperature: -40°C ~ +55°C
    Storage Temperature: -50°C ~ + 70°C
    Transport Temperature: -50°C ~ +70°C
    HumidityRelative Humidity5% ~ 100%
    PressureAir Pressure62kpa ~ 101kpa (similar to 0m ~ 5000m altitude)
    Radiation IntensitySolar Radiation Intensity1120 ×(1±5%)W/m2

    4. Accessories List


    No.ItemQuantityUnitSpecs
    1Outdoor Telecom Cabinet1Set

    (1) External Dimension

    H×W×D 1300×650×650mm ;

    (2) One compartment: including 24U 19” rack.

    (3) With one front door, with three point lock for outdoor cabinet.

    (4) Material: Galvanized steel; single wall + heat insulati: 1.5mm outer steel plate+ 20mm inner insulation

    (Option: galvanized steel; double wall+heat insulation, 1.5mm outer plate, 0.8mm inner plate, there is 20mm insulation between two plate)

    2Air Conditioner1Set

    Cooling Capacity: 500W;

    Power Supply: 220VAC, 50Hz

    3Fan2SetDC48V
    4LED Lamp Switch1PCFor controlling LED lamp on/off
    5LED Lamp1PCDC48V
    6Package1SetWooden Case

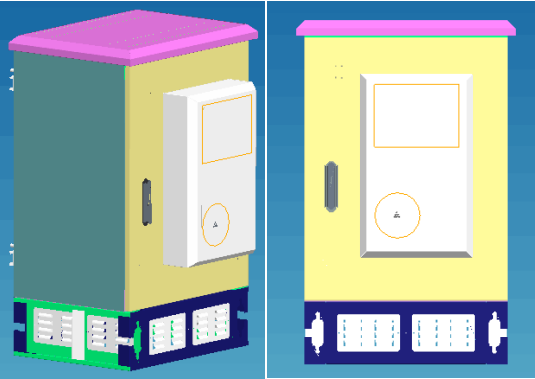

    5.Cabinet Drawing


    External Dimension H×W×D 1300×650×650mm(19”, 24U);


    6. Cabinet Layout
