650W Industrial Electrical Enclosure Heat Exchanger , Mixed Working
Fluid Heat Exchanger
Quick Details:
| Place of Origin: Shenzhen, China (Mainland) | Rated Heat Exchange Capacity: 65W/K |
| Brand Name: ESTEL | Heater Power:300W |
| Model: HE06-65SEH/01 | Input Voltage: DC48V |
| Product Name: Outdoor Enclosure Heat Exchanger | Rated Input Current: 2.05A |
| Certification: ISO9001, CE, 3C, FCC, TLC | Rated Input Power: 99W |
| Cover Material: galvanized steel | Working Temperature: -20°C ~ +55°C |
| Protection Level: IP55 | Noise: 55dB |
| Installation Mode: door mounted, side mounted | Dimension H×W×D: 800×380×170 mm |
| Support OEM | Cooling Method: heat pipe, passive cooling |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 13,000 sets per month |
| Delivery Time: | 7-10 working days |
| Packaging Details: | carton + foam + wooden case |
1. Technical Parameters
| Model | HE06-65SEH/01 |
| Performance Parameters |
| Rated Voltage (V) | DC48V |
| Rated Current (A) | 2.05 |
| Heat Exchange Capacity (W) | 650 |
| Heater Power (W) | 300 |
| Rated Power (W) | 99 |
| Circulation Air Volume (m3/h) | 450 |
| Noise (dB(A)) | 55 |
| Refrigerant | Mixed Refrigerant |
| Working Temperature | -20°C ~ 55°C |
| Mechanical Parameters |
| Installation Mode | Side |
| Height (mm) | 800 |
| Width (mm) | 380 |
| Depth (mm) | 170 |
| Controller Parameters |
| Working Voltage (V) | DC36~72 |
| Working Temperature and Humidity | -20°C ~ +80°C, <90%RH |
| Temperature Control Accuracy (°C) | 0.1 |
| Power Consumption (W) | 5 |
| Communication Mode | Dry contact,RS485, RS232, GPRS |
2. Description
Heat Pipe Heat Exchanger uses refrigerant phase-change heat
transfer principle to conduct passive cooling to cabinet equipment
compartment. It makes full use of temperature difference between
cabinet internal environment and external environment, effectively
introduce the external cold air, fast move heat inside the station
to the outer environment, to realize cabinet cooling. The energy
efficiency ratio of the heat exchanger is above 8~9, with high
efficiency and energy saving.
3. Features
(1) Independent energy saving control technology greatly reduces
working energy consumption;
(2) LCD control board provides easy installation and maintenance;
(3) Perfect monitoring function, effective monitoring and
management on air conditioner operation;
(4) Integrated design, easy for installation and maintenance;
(5) Protection Level: IP55, anti- corrosion, long service life;
(6) Using DC high efficient fans, greatly lower the product noise,
environment friendly;
(7) Good energy saving performance, short investment payback
period;
(8) Long service life: more than 10 years, easy maintenance and low
cost;
(9) With RS485 remote monitoring interface, fault detection and
alarm can be transmitted to monitoring center through controller.
(10) The heat exchange capacity can be set according to need
4. System Principle Diagram
5. Electrical Wiring Diagram
Wiring Ports:
0V -48V: power supply input (voltage input: DC36 - 65V)
A+ B- SGND: RS485 communication interface
AL1 AL2: general alarm output
F+ F- : auxiliary direct ventilation control output (output voltage: DC36
- 65V)
6. System Control
6.1 Application
ET725 intelligent heat exchanger controller is a type of universal intelligent
controller. It is controlled by highly integrated STC single chip
microcomputer. The controller features perfect performance, easy
and fast installation and setting, which is widely used in telecom
cabinet, small and medium sized telecom room, UPS room, outdoor
base station room, outdoor advertising machine, bank ATM banknote
exchange room etc.
6.2 Main Technical Parameters
- Three digits seven segment LED display measured temperature and set
temperature;
- Temperature measurement accuracy: 0.1 °C; display accuracy:0.1 °C;
- Intelligently select cooling or heating mode;
- Direct ventilation function with protective mode;
- Power supply: DC48V;
- Power consumption:≤5W;
- Working environment: -30°C~70°C; <90%RH;
- Installation method: guide rail, hanging;
- Dimension:150mm×190mm×45mm (L×W×H)
7. Wiring Diagram

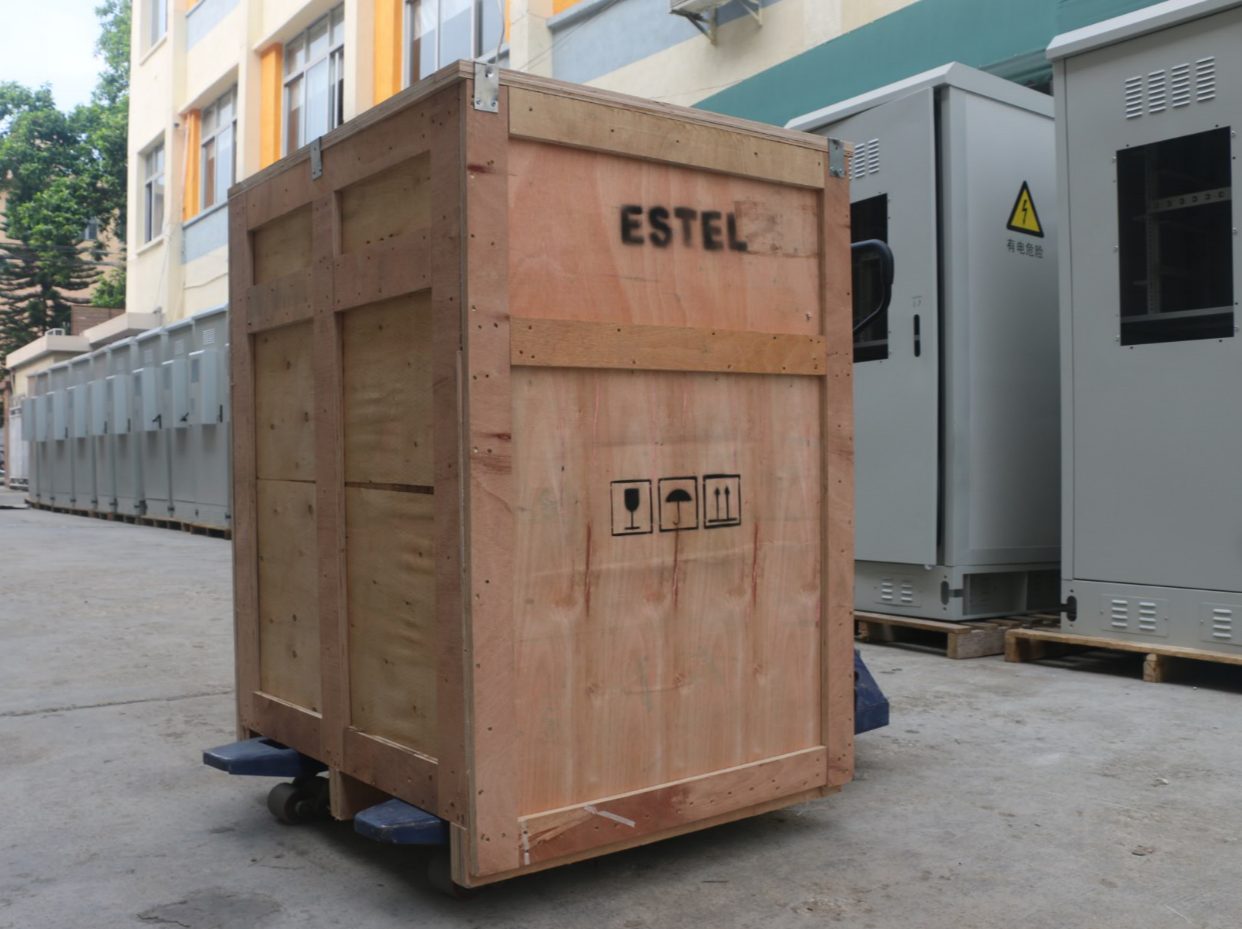

8. Packing and Shipping
Our Delivery Agent
The goods can be shipped by sea, by air, by courier, by land, by
train, etc.
Besides the following delivery agent, we can also look for the
delivery agent with the best price in china if you need us to do
for you.
