R410a Refrigerant Outdoor Cabinet Air Conditioner 60Hz With Intelligent Controller

Quick Details:

Payment & Shipping Terms:

1. Specifications

(1) Technical Parameters

Dimension Diagram: H×W×D: 750×500×210mm

2. Description

TC06-150JFH/01 Air Conditioner is a full automation temperature control product. It uses intelligent controller to control the whole system of the air conditioner. According to the variation of environment temperature, the intelligent controller can automatically detect, operate and record the whole system’s operating time, power consumption, event and historical data. It can store 100 event records and 1280 historical data records, and can enquire 256 days’ daily record information.

3. Application

The product is widely applied in telecom cabinet, small and medium sized telecom room, UPS room, outdoor base station room, etc.

4. Features

• Strong adaptability
• High intelligence
• High precision
• High reliability
• Low noise
• Low energy consumption
• With 4 way switching value detection
• With 1 way room air conditioner control
• Voltage input range: 220VAC±15% 60Hz
• With dry contact alarm output

5. System Principle Diagram

6. Electrical Wiring Diagram

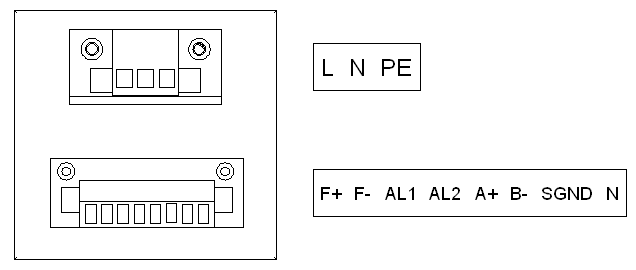

Wiring Ports:

L N PE : power supply port (voltage input: 220VAC±15% 60Hz)

F+ F- : direct ventilation output port

AL1 AL2: general alarm output port

A+ B- SGND: RS485 communication port

N: not connected pin

7. System Control

7.1 Function and Application

ET731 intelligent air conditioner controller is a universal intelligent controller, controlling with highly integrated STC SCM. It can intelligently control thermostatic cabinet air conditioner working and hydrogen exhausting, including functions such as fault self diagnosis, power-on self start, or restart after unexpected failure caused by other reasons. The controller is compatible with all types of air conditioners in the market.

The controller, with the features of advanced performance, easy installation and setting, are widely used in telecom cabinet, small and medium sized telecom room, UPS room, outdoor base station room, etc.

7.2 Technical Parameter

• 2×16 Chinese/English shift LCD display, user friendly;
• Simultaneously display temperature and humidity inside the box and communication room temperature;
• Temperature measurement accuracy: 0.1 °C; humidity measurement accuracy:5%;
• Can store 180 days’ daily event record, 1 record every day;
• Daily highest temperature, lowest temperature, average temperature
• Daily event record;
• Save the former day’s daily data at 0:00 every day; Can query 180 days’ daily record information;
• RS485 communication, YD/T 1363.1-2005 standard protocol, support remote detection and control;
• Control mode: pulse (Non dry contact air conditioner), conducting (dry contact air conditioner)
• Real-time control air conditioner on/off
• Power supply: AC185V~264V/60HZ;
• Power consumption:≤5W;
• Working environment: -30°C~70°C; <90%RH;
• Installation method: guide rail,hanging;
• Dimension(L×W×H):150mm×190mm×45mm

7.3 Operating Instruction

ET731 uses Chinese/English interfaces, which can be operated easily. All the operations can be realized with four buttons. The following is the control board diagram:

Control Board Diagram

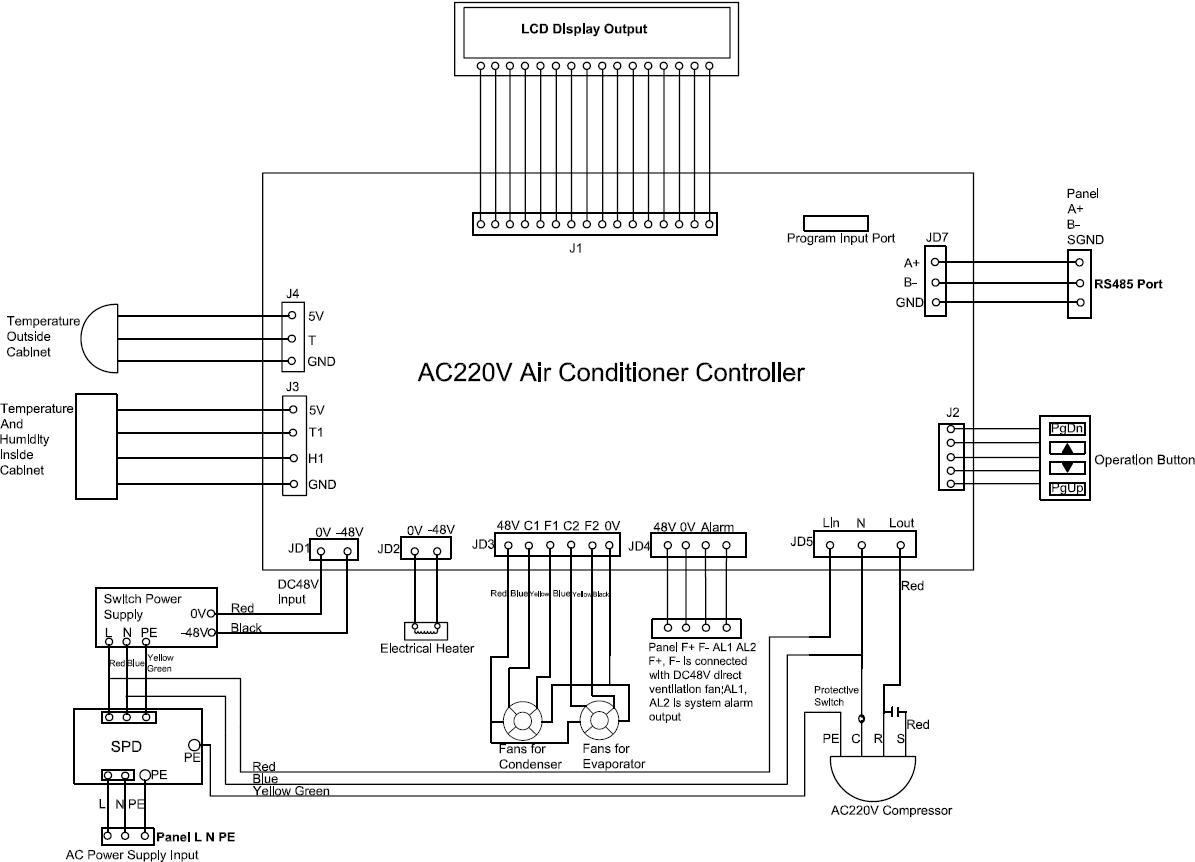

8. Mainboard Wiring Diagram
