4G System / Communication Outdoor Telecom Cabinet Anti Corrosion
Powder Coating
Quick Details:
| Place of Origin: Shenzhen, China (Mainland) | External Size H×W×D 1700×900×900mm |
Brand Name: ESTEL | Structure: double wall, with insulation, sandwich structure. |
Model Number: DDTE071 | Cabinet Layout: one compartment, for installing 19” equipment |
Product Name: Outdoor Telecom Equipment Cabinet | Cabinet Lock: anti-theft three point lock |
| Certification: ISO9001, CE, 3C, FCC, TLC, IP55 | Protection Level: IP55 |
| Application: outdoor telecom base station | Cable Entry: at cabinet bottom |
| Material: galvanized steel (support custom made) | Illumination: DC48V LED lamp |
Heat Insulation: PEF | Grounding Protection: copper bar |
Color: grey (support custom made) | Cooling: AC220V air conditioner and DC48V fans |
Coating: anti-corrosion outdoor powder coating | Accessories Options: door sensor, led lamp |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Payment Terms: | L/C,D/A,T/T, Western Union, Paypal, etc |
| Supply Ability: | 9,000 sets per month |
| Delivery Time: | 10-15 working days |
| Packaging Details: | wooden case |
1. Specifications
(1) Technical Parameters
| Item | Type | Technical Parameter |
| Structure | Dimension | External Dimension: H×W×D 1700×900×900mm |
| Layout | 1 compartment |
| Equipment Installation Method | 19” rack |
| Door | With one front door, and anti-theft three point lock for outdoor
cabinet (support padlock) |
| Material | Galvanized steel; 1.5mm thick outer plate, 0.8mm thick inner plate |
| Heat Insulation | There are heat insulation between inner wall and outer wall. The
insulation material is 20mm PEF. |
| Structure | Assembled or welded |
| Ingress Protection | IP55 |
| Temperature Control | Cooling | AC220V air conditioner and DC48V fans |
| Lightning Proof | Grade B lightning proof | Nominal: 60KA, Max.: 100KA |
| Lighting | LED lamp | 48V LED lamps (immovable), with protective circuit breaker |
| Temperature | Temperature | Working Temperature: -40°C ~ +55°C |
| | Storage Temperature: -50°C ~ + 70°C |
| | Transport Temperature: -50°C ~ +70°C |
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1120 ×(1±5%)W/m2 |
Accessories List
| No. | Item | Quantity | Unit | Specs |
| 1 | Outdoor Telecom Cabinet | 1 | Set | (1) External Dimension: H×W×D 1700×900×900mm; (2) 1 compartment,:equipment compartment; (3) With one front door , and anti-theft three point lock for
outdoor cabinet (support padlock) (4) Material: galvanized steel;
1.5mm thick outer plate, 0.8mm thick inner plate;with 20mm PEF heat
insulation between two walls. |
| 2 | Air Conditioner | 1 | Set | Cooling capacity: 1.5KW, Power supply: AC220V, 50HZ; Model: TC06-150JFH/01 |
| 3 | Auxiliary Direct Ventilation Fans | 2 | PC | 12025 DC48V |
| 4 | Door Sensor | 2 | PC | One for controlling LED lamp, the other one for open door alarm |
| 5 | LED Lamp | 1 | PC | DC48V |
| 6 | Package | 1 | Set | Wooden Case |
2. Feature
- The cabinet is dustproof, sunproof and rainproof, which is used in
outdoor environment.
- The equipment compartment cooling: fans and air conditioner. (Other
cooling option: heat exchanger). MTBF≥50000h
- The layout of the cabinet is reasonable, which will facilitate
cable access, fixing and grounding. There are entrance holes
individually for power cable, signal cable and optical cable.
- All the cables used in the cabinet are made from flame retardant
materials.
3. Applications
The DDTE071 Outdoor Telecom Equipment Cabinet is mainly used in
wireless communication base station, such as 4G system,
communication/network integrated service, access/transmission
switching station, emergency communication/transmission, etc.
4. Description
4.1 Cabinet Structure
The cabinet includes 19” equipment installation rack. The cabinet
includes one air conditioner and two fans, installed on front door.
4.2 Cabinet Material
The cabinet is made of galvanized steel, with double walls,
thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm.
There are heat insulation between inner wall and outer wall. The
insulation material is 20mm PEF, heat insulation coefficient:
0.035W/m·K. The cabinet is assembled type.
4.3 Cabinet Door and Lock
The cabinet includes one front door. The cabinet door uses embedded
structure. The door opening angle is larger than 110°and the door
limit device can limit the opening angle. The lock is theftproof
three point lock, supporting padlock.
4.3.1 Door lock theft proof design
Damage resistance of the theft proof lock meets GA/T 73-1994
“Mechanical Anti-theft Lock” class B requirement, supporting
padlock.

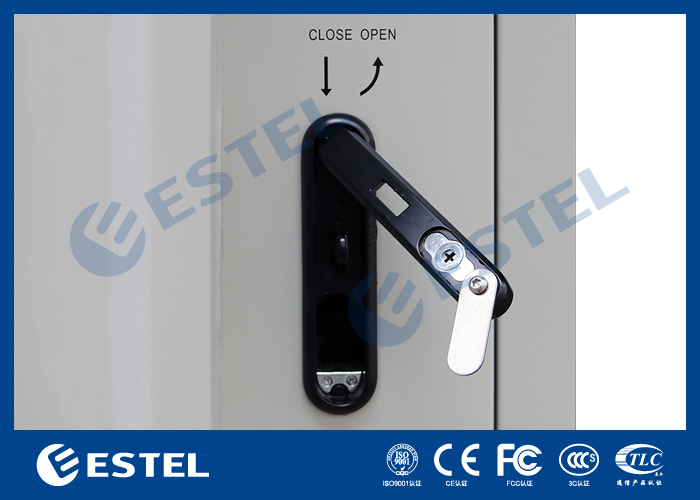

Three point lock
4.4 Cable Inlet
Feeder cable and other external cables all use bottom wiring
method.
4.5 Grounding Protection
- The cabinet includes grounding copper bar with anti-corrosion
coating. There are enough screws for wiring connection terminals.
- The metal part of the cabinet should be interconnected and be
connected with grounding bar. Connection resistance between any two
points is lower than 0.1Ω.
- Protective earthing of other equipments inside the cabinet should
be connected to the grounding bar.
4.6 Connection and Fastening
- Use anti-loose threaded connection as structure and bearer
connection. Anchor bolt for fixing cabinet use hot dip galvanized
bolts.
- Door hinges use inner hinge mode.
4.7 Appearance and Surface Treatment
Cabinet surface coating is outdoor special powder coating, with
white gray color (PANTONE 428C). The coating complies with GB/T
3181-2008 requirement.
