Single Wall IP55 Waterproof 40U Outdoor Telecom Cabinet Anti
Corrosion
1. Outdoor Telecom Cabinet Technical Parameters
| Item | Type | Technical Parameter |
| Structure | Dimension | External Dimension: W×D×H
900×900×2100mm |
| Layout | 1 compartment |
| Equipment Installation Method | 19" rack, 40U |
| Door | With one front door, and three point lock for outdoor cabinet
(support padlock) |
| Material | Galvanized steel, single wall with insulation |
| Heat Insulation | 20mm PEF |
| Ingress Protection | IP55 |
| Temperature Control | Cooling | Air conditioner and fan |
| Lighting | LED lamp | LED lamp |
| Temperature | Temperature | Working Temperature: -40°C ~ +55°C |
| Storage Temperature: -50°C ~ + 70°C |
| Transport Temperature: -50°C ~ +70°C |
| Humidity | Relative Humidity | 5% ~ 100% |
| Pressure | Air Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| Radiation Intensity | Solar Radiation Intensity | 1120 × (1±5%) W/m2 |
2. IP55 Telecom Cabinet Profile
ESTEL is a professional manufacturer of outdoor telecom cabinet and
temperature control solution for outdoor telecom cabinet in China.
We have more than 10 years of
R & D, production and export experience.
3. Our Cabinet Advantages
(1) We can integrate air conditioner, environment monitoring
system, rectifier system, power distritbution, inverter, battery
and optical fiber into the outdoor telecom cabinet.
(2) Cabinet material: galvanized steel, stainless steel, aluminum
and cold rolled steel are optional.
(3) Various cabinet installation method: ground mount, wall mount
and pole mount.
(4) Cabinet cooling method: air condtioner, heat exchanger, TEC and
fan are optional.
(5) Cabinet type: equipment cabinet, battery cabinet and power
cabinet(single compartment, two compartments, multiple
compartments).
(6) We have professional design engineers, can exactly custom made.
(7) Outdoor cabinet high protection level, IP55, IP65, IP66,
waterproof, dustproof, can be used in harsh outdoor environment.
(8) Embedded door structure, three point lock, no outer srews,
enhance anti-theft.
(9) Direct sales from manufacturers to increase your profit margin.
(10) Strict quality inspection and stable quality.
(11) Fast delivery, no worry about delivery time.
(12) Perfect after-sales service.
4. Outdoor Telecom Cabinet Features
(1) The cabinet is dustproof, sunproof and rainproof, IP55
protection level.
(2) Cabinet cooling: air conditioner and fan.
(3) The layout of the cabinet is reasonable, which will facilitate
cable access, fixing and grounding. There are cable inlets
individually for power cable, signal cable and optical cable.
(4) Include grounding bar.
(5) Including environment monitoring system with SNMP
commmunication.
(6) Power distribution can be custom made based on client's actual
need.
(7) Telecom rectifier system can be customized.
5. Cabinet Accessories List
No. | Item | Quantity | Unit | Specs |
1 | Outdoor Telecom Cabinet | 1 | Set | (1) External Dimension W×D×H
900×900×2100mm (2) One compartment: including 40U standard 19" rack (3) With one front door and three point anti-theft lock for outdoor
cabinet(support padlock) (4) Material: galvanized steel; single wall with heat insulation (5) IP level: IP55 (6) Cable entry on the bottom (7) Including grounding copper bar |
2 | Air Conditioner | 1 | Set | Air conditioner Cooling capacity: 1500W, Power Supply: AC220V, 50Hz |
3 | Fan | 1 | Set | Two AC220V fan and one temperature controller |
4 | Environment Monitoring System | 1 | Set | 1× environment monitoring unit,19", 1U; AC220V, support
RS485 and SNMP communication 1× smoke sensor, 1× water sensor, 1× temperature sensor, 1× door sensor. |
5 | AC and DC Power Distribution Unit | 1 | Set | Grade B Lightning Proof AC Input: 63A/2P×1; AC Output: 16A/1P×4; DC Output: 16A/1P×4； Height: 4U |
6 | LED Lamp Switch | 1 | PC | Used for controlling LED lamp on/off |
7 | LED Lamp | 1 | PC | AC220V, used for illumination in the cabinet |
8 | Package | 1 | Set | Wooden Case |
6. Telecom Rectifier System

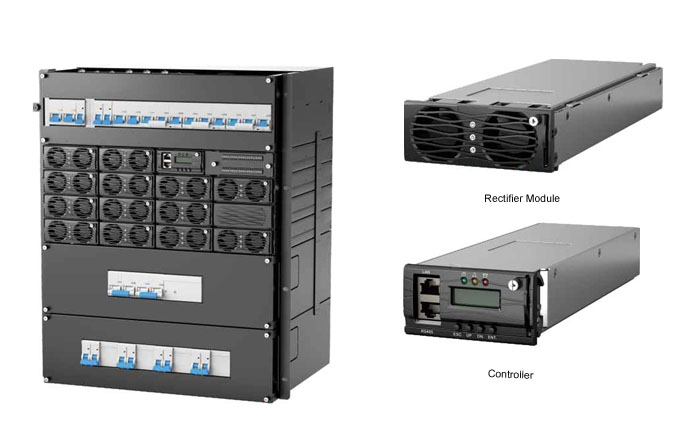

Model: ET48450P200 Pictures
Rectifier System ET48450P200 Introduction
ET48450P200 is a 19-inch sub-rack for hybrid power system, with 13U height
compact design to meet critical application needs of fiber and
microwave transmission, access device, switch. The system's maximum
power is 450A, with AC input/DC input/battery/load MCBs. The cables
are front accessing with MCB and busbar.
Key Features
Wide input voltage range: 85 to 290VAC for rectifier and 120 to
420VDC for MPPT
Supports ethernet, SNMP,ModBus and RS485 communication interfaces
Rectifier, MPPT and controller are hot pluggable, easy and quick
on-line maintenance
High efficiency up to 96% for lower operating cost
| Telecom Rectifier System - ET48450P200 |
| Dimension | W482 x D350.6 x H13U, ≤40kg (without modules) |
| Cooling Mode | Natural cooling |
| Maintenance Mode | Front maintenance |
| Protection Level | IP20 |
| Input Distribution |
| AC | DC |
| Input Mode | 380VAC three-phase | 120VDC ~ 420VDC |
| Input Frequency | 45 ~ 65Hz, rated value: 50Hz/60Hz | / |
| Input Capacity | 100A/4Px1 | 25A/2Px4 |
| SPD | 20kA/40kA, 8/20μs |
| Output Distribution |
| Rectifier Module | Solar Module |
| Output Voltage | -42 ~ -58VDC, rated value: -53.5VDC | -42 ~ -58VDC, rated value: -54.5VDC |
| Battery Breakers | 250A/1P x3(125A/3P x 3) |
| Load Breakers | LLVD: 125A/P x 2, 25A/1P x 1, 1 spare pos BLVD: 125A/1P x 2, 6A/1P x 2 |
| DC SPD | 10kA/20kA, 8/20μs |
| Module |
| Rectifier Module | Solar Module |
| Input Voltage | 85 ~ 290VAC, rated 220VAC | 120 ~ 420VDC, rated 340VDC |
| Efficiency | >96% | >96% |
| Rated Power | 3000W(176 to 290VAC) | 3000W(200 to 420VAC) |
| Working Temperature | -10°C ~ +75°C(fully output below 55°C) | -10°C ~ +75°C(fully output below 50°C) |
| Controller |
| Signal Input | 7 dry contact |
| Alarm Output | 4 AI (2 battery temp, 1 ambient temp, 1 fuel level sensor), 1
RS485, 7 DI |
| Communication Port | RS485, SNMP |
| Display Mode | LCD |
| Environment |
| Operating Temperature | -10°C ~ +50°C |
| Storage Temperature | -40°C ~ +75°C |
| Operating Humidity | 5% ~ 95% (non-condensing) |
| Altitude | 0~ 4000m (if the altitude is within the range of 3000m ~ 4000m, the maximum operating temperature decreases by 1°C as the altitude increases by 200m) |

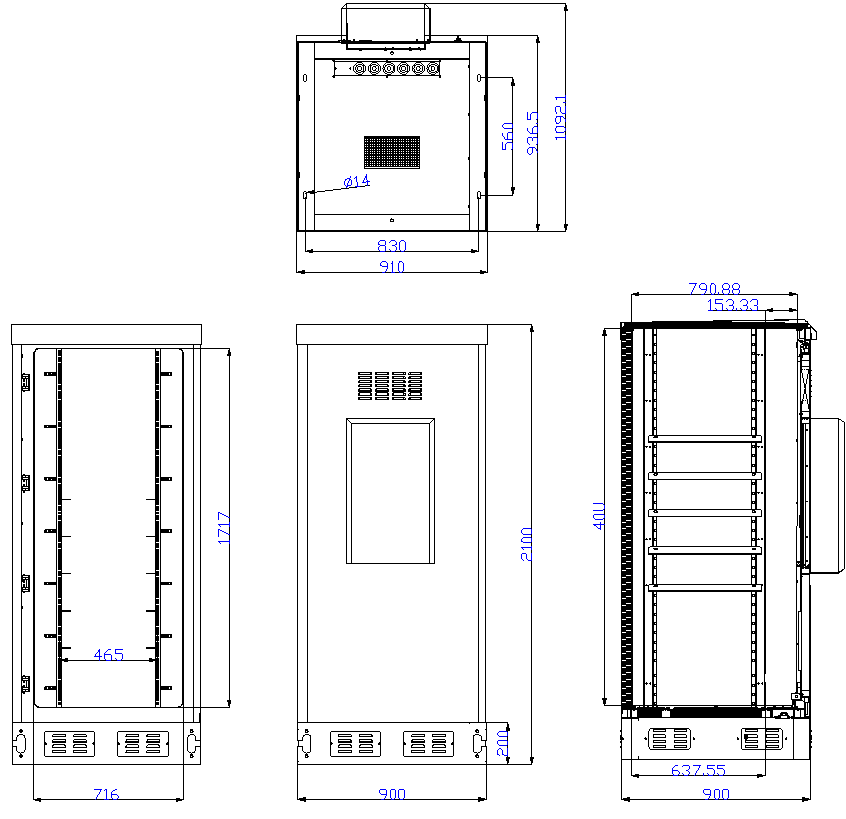

7. Drawing of Outdoor Telecom Cabinet

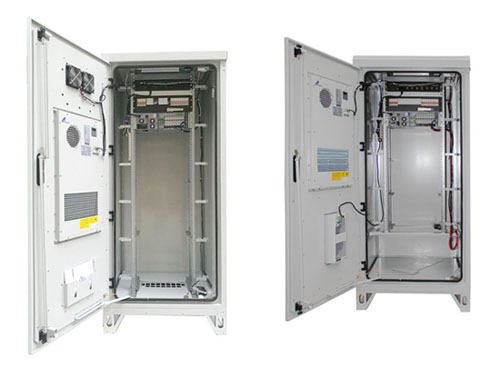

8. Customized Cabinet Pictures
9. IP65 Certificate of Outdoor Telecom Cabinet
10. Applications of Outdoor Telecom Cabinet
11. Packing and Delivery
Our package is plywood that is free from fumigation, not logs /
solid wood.
Comply with ISPM 15, Article 2.1, published by FAO of the united
Nations. Srong, moisture-proof, impact proof and special for
export.
12. Other Outdoor Telecom Cabinet Pictures
