ISO9001 20U 19 inch Rack Waterproof External Telecoms Cabinet Battery Cabinet

1.Battery Cabinet Introduction

Outdoor communication cabinet Is an outdoor cabinet system that maximizes protection of customer equipment from damage and extreme weather conditions. The cabinet can be equipped with 48VDC 200AH lead-acid batteries and 20U telecommunication equipment. It can host and provide power support for both active and passive telecommunication equipment

- Strong rack inside to be equipped with telecom equipments, power source, battery, temperature control device and other
attachments.
- Digital display the temperature-setting, temperature alarm, temperature parameters inside and outside, and all kinds of other
alarm information, etc.
- Cabinet made of low thermal conductivity and fireproof material for heat insulation fireproof.
- Can be installed in any difficult places include the top of mountain and the roof of buildings.
- Wind-proof, sand-proof, rain-proof, sun-proof and anti-theft, protection level IP55.
- Supportcustom-made.

2.Battery Cabinet Product Features

Attractive powder coat finish
Galvanised steel base
Anti-theft four-point outdoor cabinet lock, excellent keyhole protection device
IP55 cabinet, walls and roof in double steel with high quality insulation
Anti-theft four-point outdoor cabinet lock, excellent keyhole protection device
High performance Air-conditioning unit for heat removal
Door stopper to hold door open at service
Pass earthquake intensity 8 anti-seismic performance test

3.Battery Cabinet Technical Parameter

4.Cabinet Details

5.Cabinet Diagram:

6.Air conditioner parameter:

The air conditioner is specially designed for applications in the communication field, such as solving the heat dissipation problems of outdoor communication cabinets, wireless outdoor cabinet base stations, battery cabinets, etc. It is mainly used to take away the heat generated by electric energy consumed by electrical components, provide an ideal temperature and humidity environment for various cabinets, isolate dust and corrosive gas in the external environment, prolong the service life of electrical components, and improve the operational reliability of machine systems. Products are suitable for electrical control box, communication, communication equipment, data processing box and control box of heavy motor equipment, etc.

Air conditioning parameter list

Item	Name	Unit	Parameter
Dimension and installation	Body outline dimension (height*width*depth )	mm	750*450*200
	Outline dimension including flange(height*width*depth )	mm	784*484*200
	Weight	Kg	24
	Installation method	Door Mounted
	Installation method	Outdoor
Environment and protection	Working environment temperature	℃	-40 to +55
	Noise	dB(A)	65
	Life expectancy	Years	>10
	IP grade	IP55
	Refrigerant	R134a
	ROHS certification	yes
Performance	Input voltage range	110±15%VAC~50Hz
	Refrigerating capacity(L35/L35)	W	1500
	Rated Refrigerating input power(L35/L35)	W	630
	Rated Refrigerating current (L35/L35)	A	5.5
	Maximum Refrigerating current	A	7.6
	Heat capacity(optional)	W	1000
	Air Volume of Inner Circulation	m3/h	320

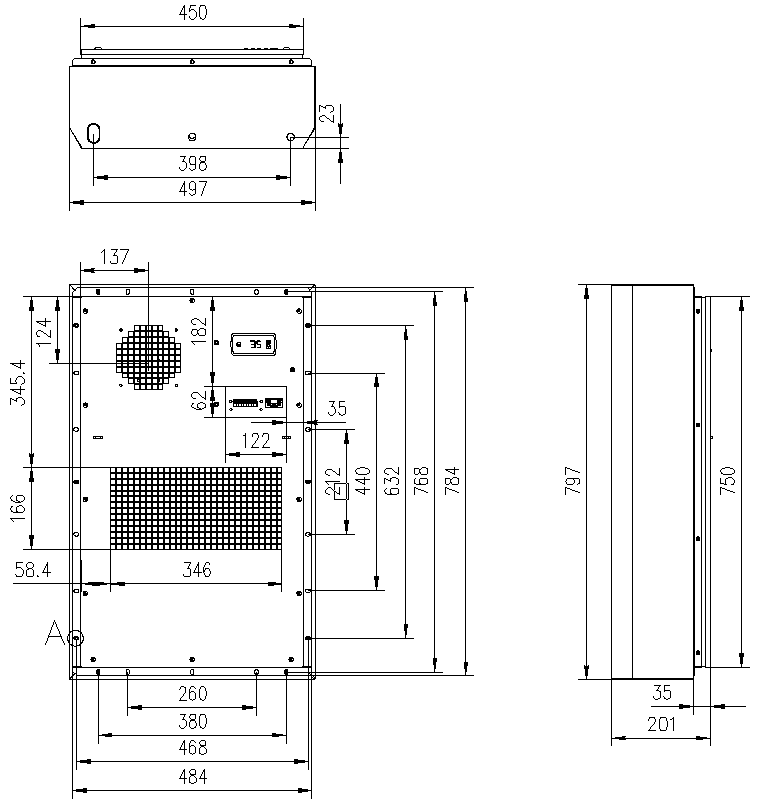

7.Air conditioner Diagram:

8.Cooling system for you to choose:

Cooling System(Optional)
No.	Item	Specifications
1	Air Conditioner	AC220V/DC48V, Cooling capacity 300w, 400w, 600w, 800w, 1000w, 1200w, 1500w, 2000w, 2500w, 3000w, 3500w, 4000w; AC380V,5000w
2	Heat Exchanger	AC220V/DC48V, Heat transfer 80w/k, 100w/k, 120w/k, 150w/k, 200w/k
3	Thermoelectric Cooler (TEC)	DC48V, Cooling capacity 200w, 300w
4	Fan	DC48V

9.Cabinet Wooden Case Packaging

Introduction
