Optical Fiber Distribution Cabinet Outdoor Telecom Cabinet Three Compartments

1.Cabinet Instructions

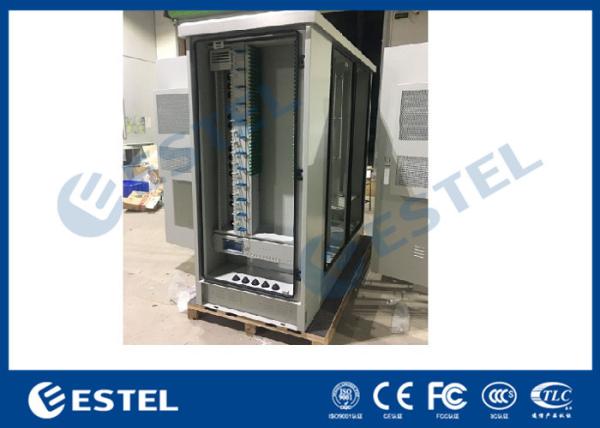

This three compartments cabient is very popular in our market. It can support the installation of electronical equipments,batteries and fiber disribution.It has 2 front doors and 1 side door for easily access. The cooling of the cabinet is 2 fans on the top cover of the cabinet. This cabinet is suitable to be used in telecommunication system,wireless network system for different applications.

2.Technical Parameters

3.Cabinet Application

The Outdoor Telecom Equipment Cabinet is mainly used in wireless communication base station, such as 4G system, communication/network integrated service, access/transmission switching station, emergency communication/transmission, etc.

4. Cabinet Material

The cabinet is made of galvanized steel, with double walls, thickness of outer plate: 1.5mm, thickness of inner plate: 0.8mm. There are heat insulation between inner wall and outer wall. The insulation material is 20mm PEF. The cabinet is assembled type.

5.Cabinet Door and Lock

The cabinet door uses embedded structure.

The door opening angle is larger than 110°and the door limit device can limit the opening angle.

The cabinet door lock is theftproof three point lock, supporting padlock.

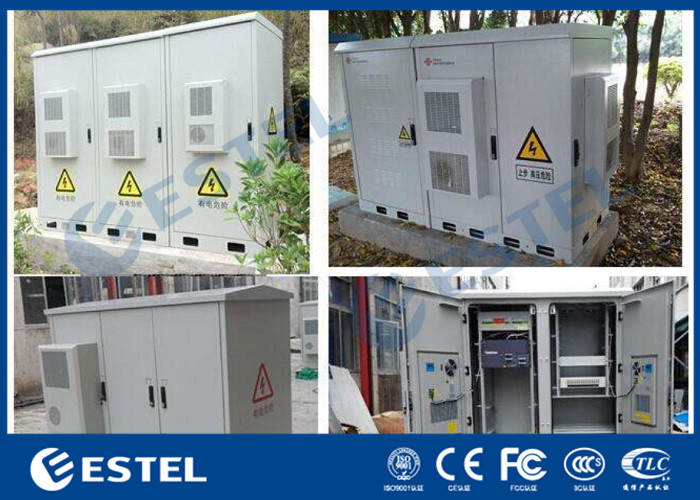

6.Application Pictures
