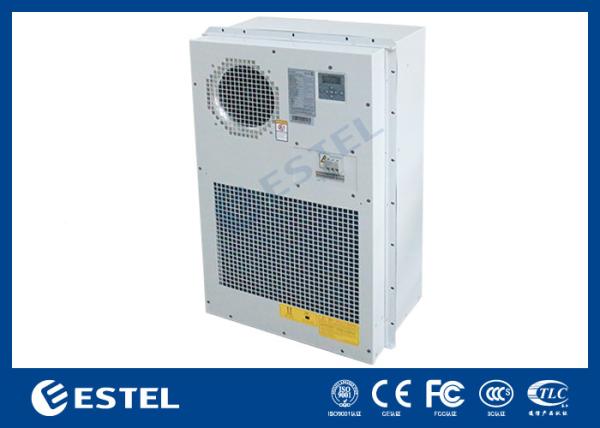

    AC220V 3000W Cabinet Air Conditioner For Outdoor Cooling Mounted On Door

    Ask Lasest Price
    Brand Name : Envicool
    Model Number : EC30HDNC1C
    Payment Terms : TT100%
    Delivery Time : 30days
    • Product Details
    • Company Profile

    AC220V 3000W Cabinet Air Conditioner For Outdoor Cooling Mounted On Door

    AC220V 3000W Air Conditioner For Outdoor Cooling Mounted On Door
    Technique Parameter
    Parameter ModelEC30HDNC1C

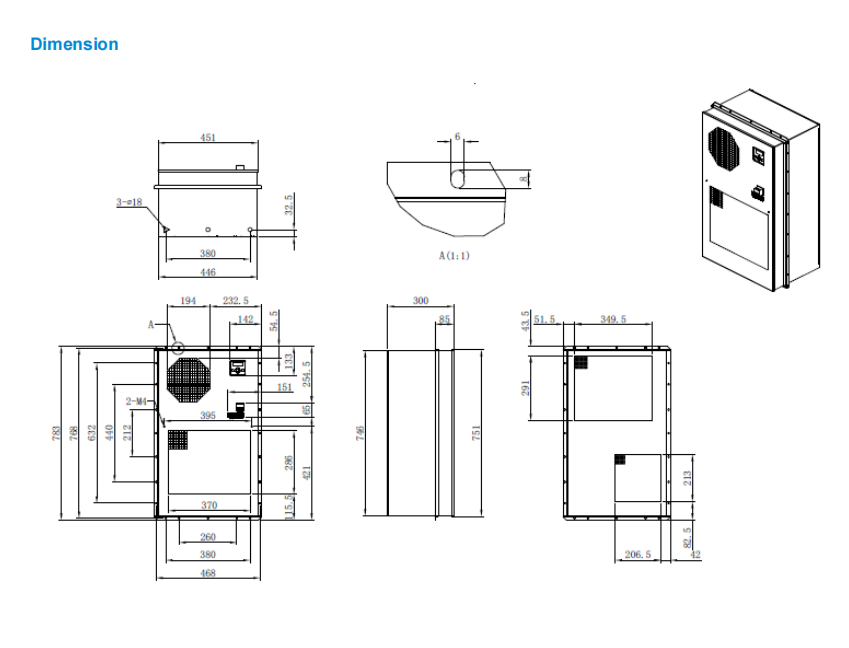

    Dimensions, Weight & Mount
    External Dimensions (H x W x D)mm746×446×300
    External Dimensions (H x W x D) With Flangemm783×483×300
    Weightkg48
    Mounting MethodDoor Mounted
    ApplicationOutdoor
    Environmental Protection & Performance
    Working Temperature RangeºC-40 ~ +55
    Noise LeveldB(A)65
    IP Protection LevelIPX5
    RefrigerantR134a
    RoHS CompliantYes
    Cooling/Heating Capacity
    Cooling Capacity@L35/L35W3000
    Heating Capacity (Optional)W1000
    Power Consumption
    Power Consumption@L35/L35W1200
    Current@L35/L35A5.70
    Airflow
    Internal Airflowm3/h850
    Power Supply
    Power Supply RangeV, Hz220±15%,50/60
    Rated operating voltage - ControllerV, Hz220, 50/60
    Rated operating voltage - Cooling/Heating SystemV, Hz220, 50/60
    Max. CurrentA9.7
    MODEL: EC30HDNC1C
    Where functionality and performance still cannot be compromised.
    220VAC power input
    3000W cooling capacity@L35/L35
    Door mounted – easy integration in outdoor cabinets
    Standard configuration with heater
    Wide working temperature range: -40ºC ~+55 ºC
    BENEFITS
    Energy saving
    Lifetime >10 years – minimum maintenance
    Environmental friendly – R134a and RoHS compliant
    IP55 and corrosion Proof
    Dedicated design by delay start
    RS485 for remote control

    1. Product Overview
    Envicool AC Air Conditioner series air conditioners combine advanced refrigeration technology and high-quality materials, and are widely used in data centers, communication base stations, industrial automation, transportation, automobiles, machine tools, food and beverage, and infrastructure. This series of products can effectively meet the needs of industrial-level refrigeration and temperature control, ensuring that the equipment can still operate stably in harsh environments.

    2. Product Features
    High-efficiency refrigeration: The use of high-efficiency compressors and optimized refrigeration systems can reduce the ambient temperature to the set value in a short time, improving the operating efficiency and stability of the equipment.
    Energy saving and environmental protection: Focus on energy saving and emission reduction, and use environmentally friendly refrigerants (such as R134a, etc.) to reduce the impact on the environment. At the same time, through optimized design and intelligent control, energy consumption is reduced and energy efficiency is improved.
    Stable and reliable: The product has a reasonable design and compact structure, and can operate stably for a long time in harsh industrial environments. High-quality materials and manufacturing processes are used to ensure the durability and reliability of the product.
    Intelligent control: Some models are equipped with an intelligent control system, which can automatically adjust the cooling capacity according to the ambient temperature and load conditions to achieve precise temperature control. At the same time, it supports remote monitoring and fault diagnosis to improve operation and maintenance efficiency.
    3. Product Series and Models
    The Envicool AC Air Conditioner series includes multiple models and specifications to meet different scenarios and needs. For example, there are precision air conditioners designed for data centers, outdoor air conditioners for communication base stations, and industrial air conditioners for industrial automation production lines. Air conditioners of different models and specifications may differ in cooling capacity, air volume, temperature control range, operating voltage, etc., and should be selected according to actual needs.

    4. Application Scenarios
    Envicool AC Air Conditioner is suitable for a variety of industrial scenarios, including but not limited to:

    Data Center: Provide a stable cooling environment for key equipment such as servers to prevent data loss or equipment damage caused by overheating.

    Communication Base Station: Ensure that communication equipment can still work normally under harsh climatic conditions and improve the stability and reliability of the communication network.

    Industrial Automation Production Line: Provide a suitable operating temperature for production equipment to improve production efficiency and product quality.

    Transportation Field: Air conditioning systems for transportation vehicles such as subways and high-speed railways provide passengers with a comfortable riding environment.


    As a brand widely used in the fields of industry and special environments, the advantages and disadvantages of Invair air conditioner can be summarized as follows:

    Advantages:
    Efficient refrigeration: Invair air conditioner adopts advanced refrigeration technology and high-efficiency compressor, which can quickly reduce the ambient temperature and ensure that the equipment operates in a stable environment. This is especially important for places that require high-precision temperature control, such as data centers and communication base stations.
    Energy saving and environmental protection: This brand of air conditioner focuses on energy conservation and emission reduction, and adopts environmentally friendly refrigerants to reduce the impact on the environment. At the same time, through optimized design and intelligent control, energy consumption is reduced and energy efficiency is improved, which meets the requirements of modern industry for green environmental protection.
    Stable and reliable: Invair air conditioner products are reasonably designed and compact in structure, and can operate stably for a long time in harsh industrial environments. High-quality materials and manufacturing processes are used to ensure the durability and reliability of the product, and reduce the failure rate and maintenance costs.
    Intelligent control: Some models are equipped with intelligent control systems, which can automatically adjust the cooling capacity according to the ambient temperature and load conditions to achieve precise temperature control. This helps to reduce manual intervention, improve operation and maintenance efficiency, and ensure that the equipment always operates in the best condition.
    Wide application: Invair air conditioner is suitable for a variety of industrial scenarios, such as data centers, communication base stations, industrial automation production lines, etc. Its diverse product series and specifications can meet the cooling and temperature control requirements in different scenarios and needs.


    Brand strength: As an old company with a certain history, Invair's products are widely used in well-known companies such as China Mobile, Wuhan Tongji Hospital, Tencent, and Huawei, which proves its brand strength and market recognition.

    Product pictures
