Customizable Indoor Power Distribution Cabinet For Data Centers And Power Supply Stations Grid

1. Application

Power distribution cabinet is an important facility responsible for power distribution, control and protection in the power system, mainly used in power grids, power supply stations, industrial plants, data centers, shopping malls and large buildings, hospitals and schools.

2. Features and advantages

(1) Flexible and diverse
It can be customized according to the actual needs of users, including cabinet size, electrical component configuration, wiring methods, etc., which can be adjusted to meet the requirements of different occasions.

(2) Compact structure, space saving
Modern distribution cabinet design fully considers the maximization of space utilization, adopting a modular design concept to make the cabinet structure compact and orderly. This design not only reduces the footprint, but also facilitates the installation of more electrical equipment in limited space, improving space utilization. Meanwhile, the compact structure also helps to reduce cable connection length, lower line losses, and improve system efficiency.

(3) Safe and reliable‌
The distribution cabinet is made of high-quality materials and advanced manufacturing processes, equipped with multiple protection devices, which can effectively detect and isolate circuit faults, such as circuit breakers, fuses, relays, etc., so as to timely cut off the power supply in case of overload, short circuit and other abnormal situations in the circuit, protecting equipment and personnel safety

(4)‌ Easy to maintain‌
The components and storage equipment of the distribution cabinet are easy to disassemble and replace, making maintenance and repair convenient. At the same time, the distribution cabinet can perform fault monitoring and alarm, timely detect and eliminate faults

(5) Efficient and energy-saving
The distribution cabinet adopts advanced energy-saving technology and intelligent control system to improve energy utilization and reduce energy waste

3. Configuration list

4. Cabinet Diagram

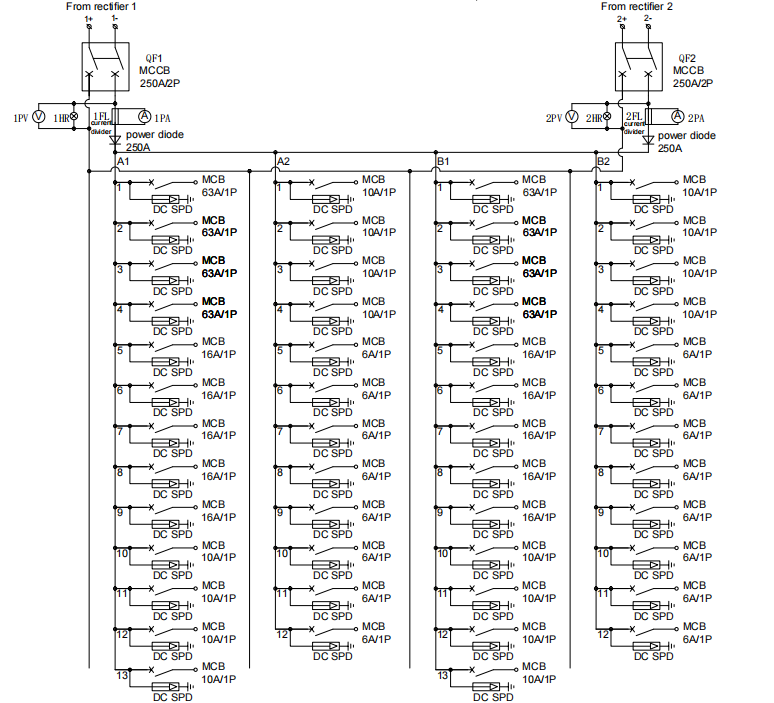

5. Electrical Schematic Diagram

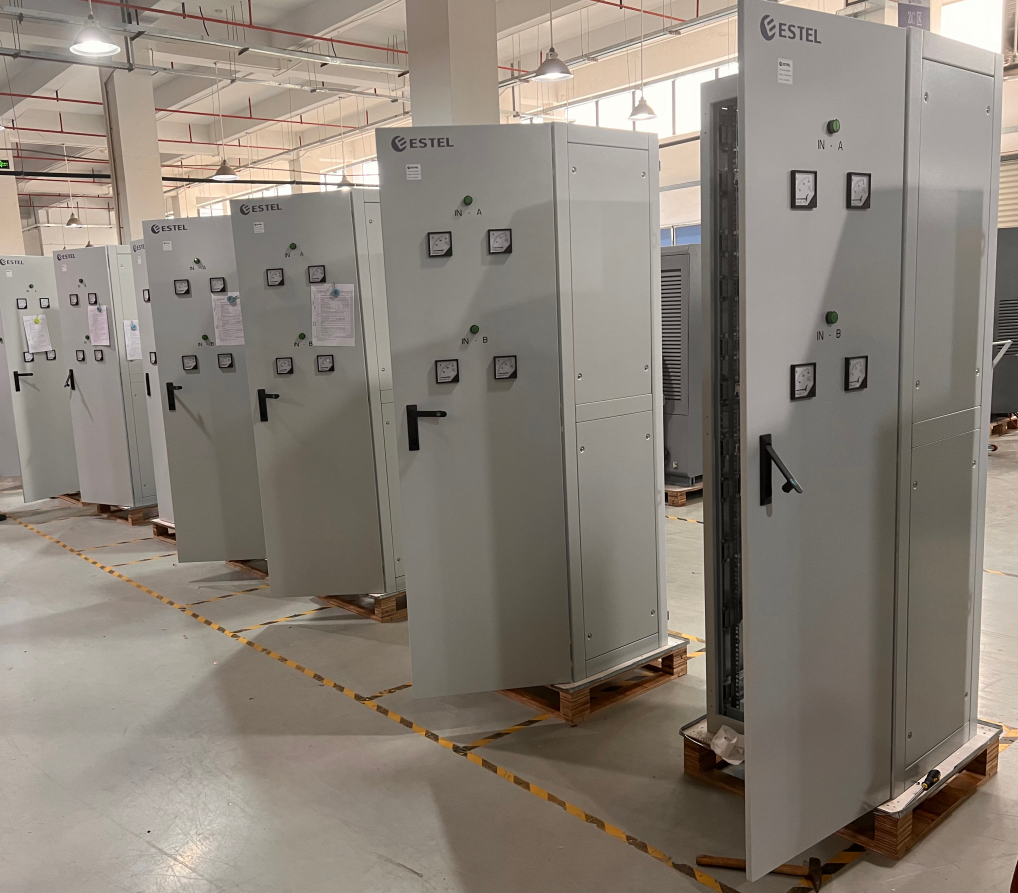

6. Product Picture

7. Packing and Shipping

Introduction

Tianjin Estel Electronic Science and Technology Co., Ltd (ESTEL(GUANGDONG)TECHNOLOGY CO., LTD), located in China, is a professional supplier of integrated outdoor telecom cabinet and temperature control solutions for outdoor telecom base station. As a science and technology innovative company, we engage in the R&D, manufacture, and sales of telecommunication equipment. Estel has a well-established team of technical and management experts who can meet customers’ specific needs accurately.

The base station integrated solutions and products include outdoor integrated telecom equipment cabinet, battery cabinet, RRU cabinet, power supply cabinet, environment monitoring system, TEC peltier air conditioner, AC220V compressor air conditioner, DC48V variable frequency air conditioner, heat exchanger, rectifier, UPS, embedded telecom power system etc. All the above solutions and products can be custom made.

Our products and solutions have been deployed all over China. Our main domestic customers are China Telecom, China Mobile, China Unicom, State Grid, Shenzhen / Beijing Metro and Huawei / ZTE etc. In addition, our products have been exported to Europe, North America, South America, Central America, Southeast Asia, Africa, Australia, Mid East countries, etc.

“ Customers First, Quality First ” is always our principle. We have attained many certifications, such as ISO9001, ISO14001, OHSAS18001, CE, UL, FCC etc. AS a telecom integrated solutions / energy saving system integrator in China, We have strong advantages in technology competitiveness, management competitiveness ,service competitiveness and price competitiveness. Through many years of experiences in design, production and implementation of different projects around the world, we have gained great reputation. Relying on professional technique and strict quality control, we will continuously offer high cost-effective products and solutions to our respectable customers globally. We will always try our best to meet customers’ need and requirement.
